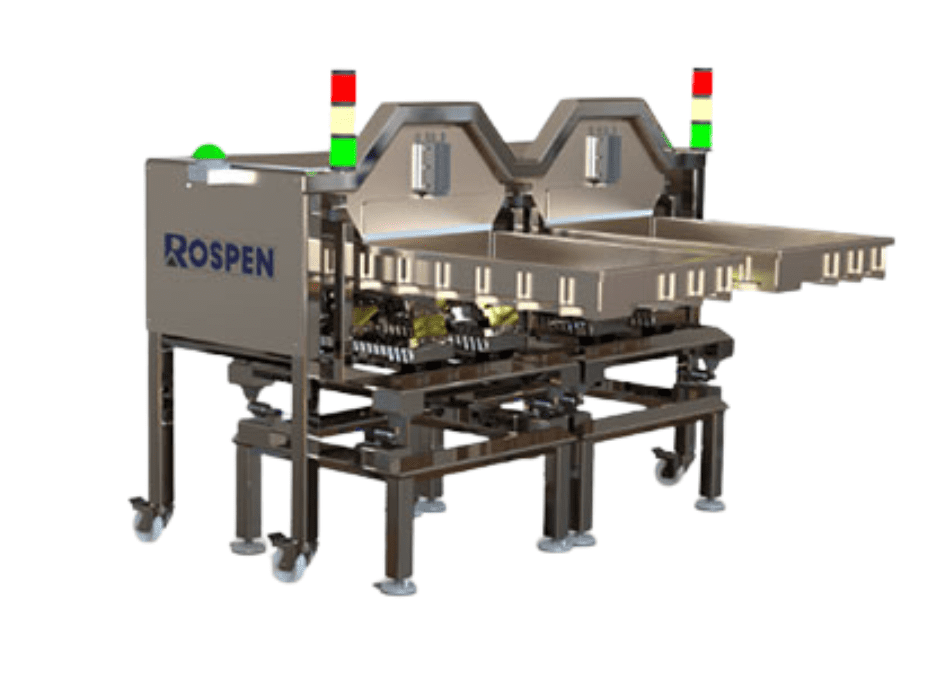

The VIBO comprises of an electro or mechanically driven vibratory tray mounted on a Rospen, Boss-Mount weighframe. Operationally, the weight of the conveyor is tared off enabling the weight of the product to be continuously and precisely measured. Controlled by a Rospen PLC it displays the conveying rate as kg/hr and total output in kilograms.

Some of the key features are listed below.

• With no moving or wearing parts maintenance is kept to a minimum.
• Mechanically simple and robust.
• Easy to clean and maintain, ideal for applications where hygiene and ease of cleaning is important.
• Suitable for use as an uncontrolled flowmeter or as a constant rate feeder.
• High and low flow rate alarm facilities.
• Feed rates from 50kg/hr to 50,000kg/hr – accurate to better than ±1%.

The output signal from the weight controller can also be used to:

• Initiate an error alarm.
• Indicate flow rate.
• Totalise flow.
• Control the output of other metering devices in ratio. This method allows the output of several metering feeders or liquid pumps to be ‘rationed’ and held in close tolerance.

The features of the Rospen Industries, Enclosed Weigh Screw, have been developed in conjunction with customers worldwide for over 25 years. Yet the design continues to develop, as industry and legislative demands are met:

• Continuous, uninterrupted weighing accuracy to ± 0.5%.
• Totally enclosed providing dust tight control of toxic or hazardous materials.
• Low maintenance design, easy to strip down and maintain.
• Instant response without process lag.
• Small installation space required.

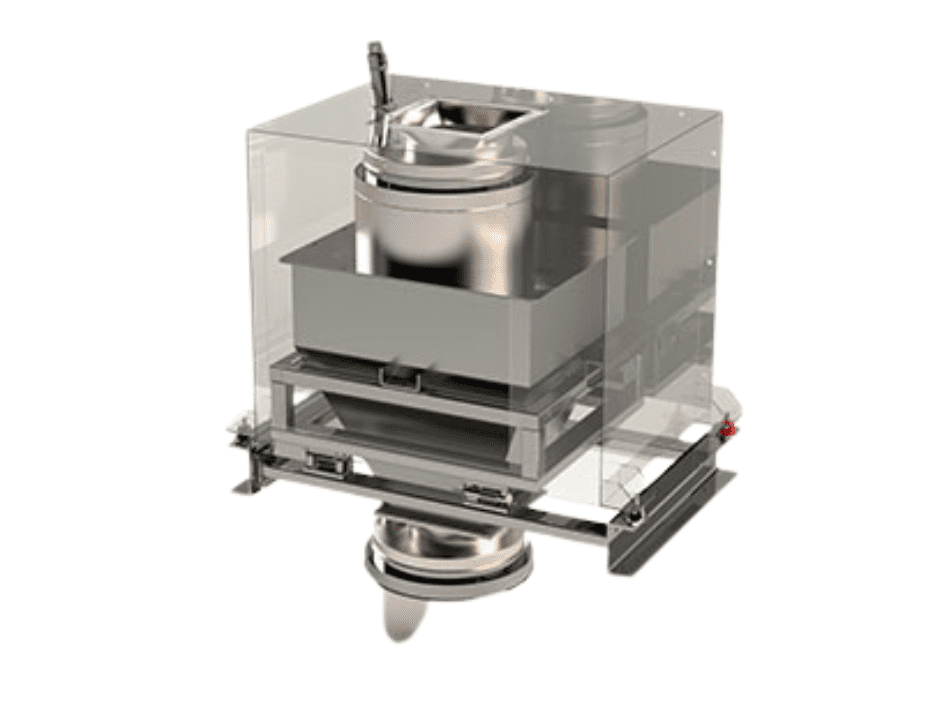

Operationally the Pulso is a gravity fed batch weigh hopper mounted on a weighframe and fitted with a pneumatically operated discharge valve controlled by the Rospen PLC.

Some of the key features are listed below.

• Simple to integrate in a vertical process.
• High accuracy due to discreet weighments.
• Suitable for continuous and intermittent operation.
• Flow rates from 100kg/hr to 20,000kg/hr are readily attainable.

The weigh belt consists of a weigh frame and a fixed speed belt feeder, which is totally weighed. The weight of the unit is tared to zero, such that only product passing over the belt is weighed. The product weight signal is measured by the PLC and the resultant correction signal is used to speed up or slow down a preconditioning, Metering Screw feeder, to bring the weight of product on the belt back to the pre-set rate:

The Rospen Industries, Weigh Belts, are continuously improved and designed to match the requirements of customers worldwide, including the following options:

• Continuous, uninterrupted weighing accuracy to + or – 0.5%.
• Automatic tare and ranging.
• Low maintenance design, easy to strip down and maintain.
• Instant response without process lag.
• Small installation space required.
• Open type provides a visual aspect of production lines.
• Hygienic cowl can be provided for food applications.
• Miniature unit: 50mm wide with output range as low as 10 g/min to 800 g/min.
• Standard range is up to 100,000 kg/hr.
