Sack Handling

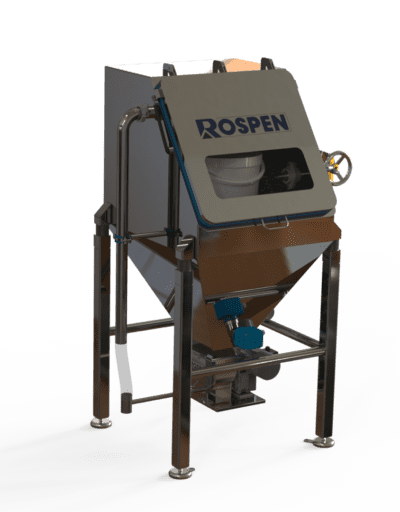

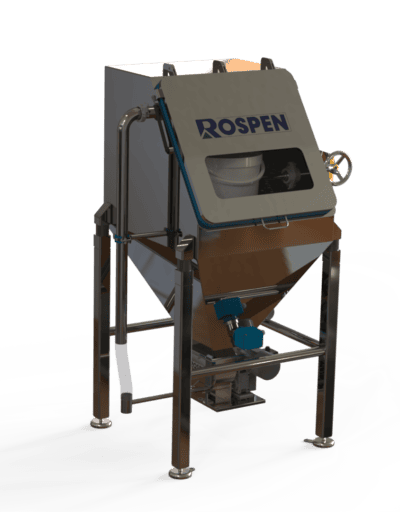

Sack Unloading Stations

  • Rospen Sack Tip Stations are designed to control nuisance dust while remaining ergonomic for the operator. Dust containment can be provided by connection to an existing LEV system or an integrated extraction fan and filter system.  Additional options include integration of police sieving, easy clean magnets and waste sack disposal.
  • Custom designed hopper geometry and capacity depending the flowability and adhesiveness of the ingredient and the feed rate requirements to ensure production is not starved of material. For each application the opening door is modified to account for the size of the sack and the extraction system air flow rate is specified to control the dust emissions for the sack emptying.
  • Options:
  • ATEX

  • Quick Release Internal Mesh
  • Dust Extraction
  • Reverse Jet Cleaning
  • Gas Strut Assisted Door
  • Check Sieve
  • Bar Magnet
  • Mobile Version
  • Discharge Aids
  • Sack Disposal
  • Weighing
  • Screw or Rotary Valve or Vacuum Conveyor Integration

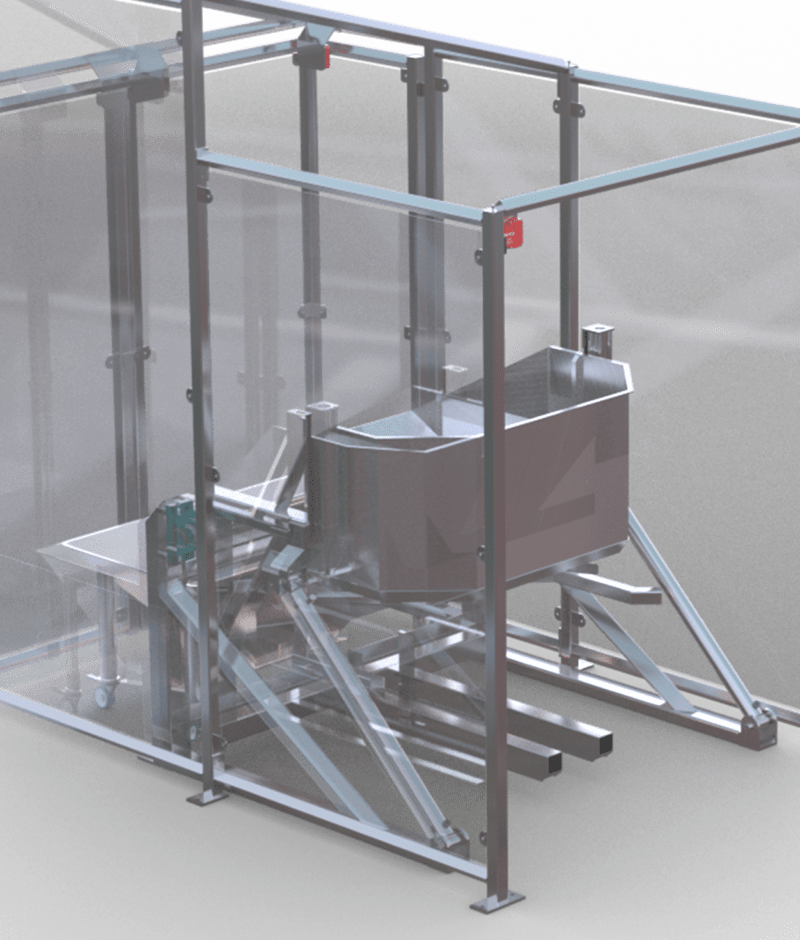

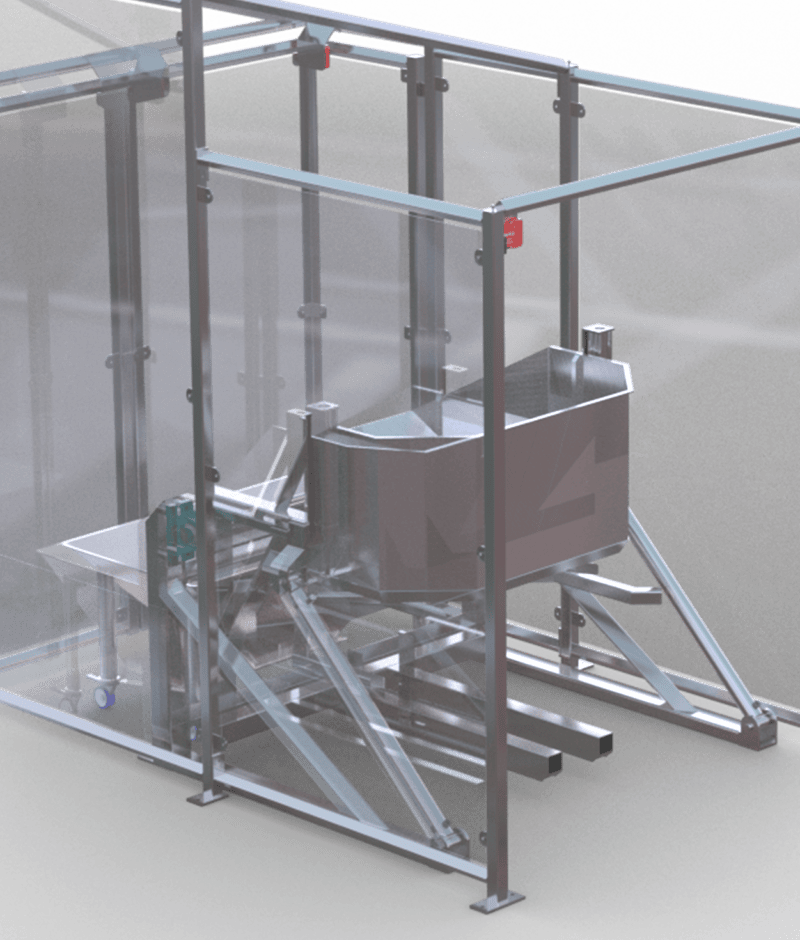

Bin Unloading Stations

Rospen Bin Tipping stations are designed to discharge Eurobins and/or Octobins using the same unit. The stations accept the bins through an interlocked door from the rear of the guarding enclosure. A pneumatically sealed clamping system is incorporated into the design to secure the Eurobin or Octobin into place during tipping and the system can only be operated with the doors closed and by the operator from the outside of the unit.

The tipper is powered by two hydraulic rams controlled by a stand-alone hydraulic power pack.

Used for free flowing dry ingredients such as nuts and biscuit pieces where the throughput rates require a more automatic handling than manual unloading. Can be used for tipping a premix of 2 or more ingredients. The hopper which is part of the tipping station can be fitted with a vibrator to help move ingredients which are prone to bridging.

Glove Box Sack Tip Station
